Overview

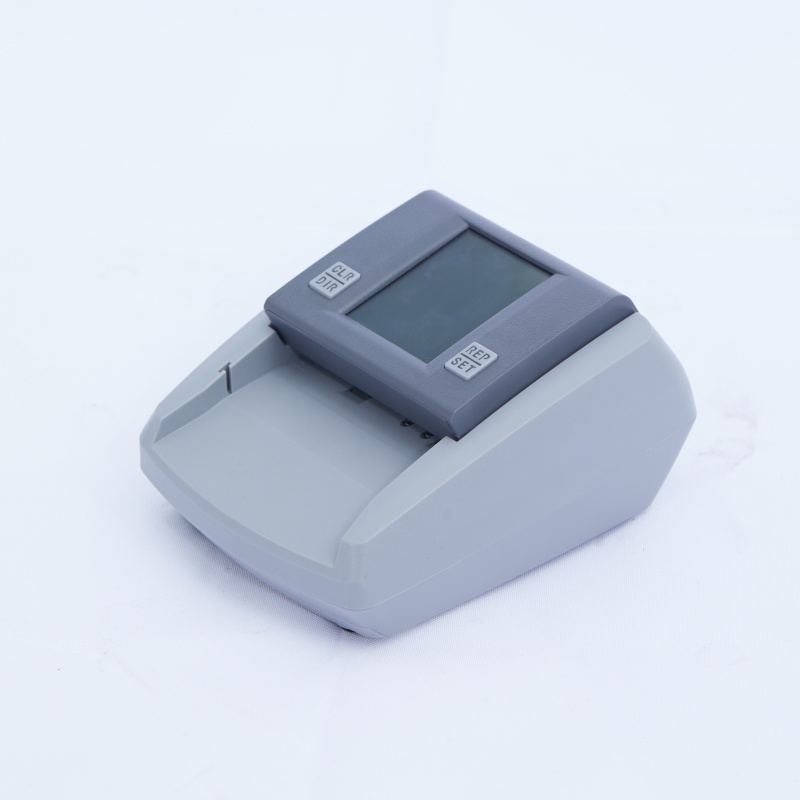

The SX-05C is a high-performance, portable banknote detector designed for reliable counterfeit detection and multi-currency verification. With advanced sensor technology and intelligent software, it provides accurate and efficient banknote authentication for banks, retailers, and mobile cash-handling operations.
Key Features
Comprehensive Detection System: Utilizes magnetic (MG), infrared array (IR), paper quality, and size detection for precise counterfeit identification.
Real-Time Display: Shows both the number of verified notes and the total value on a clear TFT LCD screen.
Portable & Rechargeable: Built-in lithium battery (optional) supports mobile operation without external power.
Upgradeable Software: USB interface allows easy updates for new denominations, missed counterfeits, and recognition improvements.
Multi-Currency Support: Automatically recognizes and counts mixed-value notes across multiple currencies.
Multi-Language Interface: User-friendly menu with multiple language options for global users.
Adjustable Sensitivity: Detection sensitivity can be fine-tuned to meet different security or circulation needs.
Intelligent Feeding Mechanism: Notes are inserted from the front and exit alternately from the front or rear, ensuring smooth operation.
Battery Status Display: LCD shows remaining power for convenience during field use.
Engineer Mode: Enables sensor status checks and calibration for maintenance or after-sales service.
Specifications
Operating Temperature: 0°C – 40°C
Storage Temperature: –20°C – 60°C
Dimensions: 154 × 130 × 81 mm
Net Weight: 625g (with battery) / 560g (without battery)
Power Supply: AC 100V–240V, 50/60Hz or DC 12V/1.0A
Power Consumption: <10W
Detection Speed: <0.3 seconds per note
