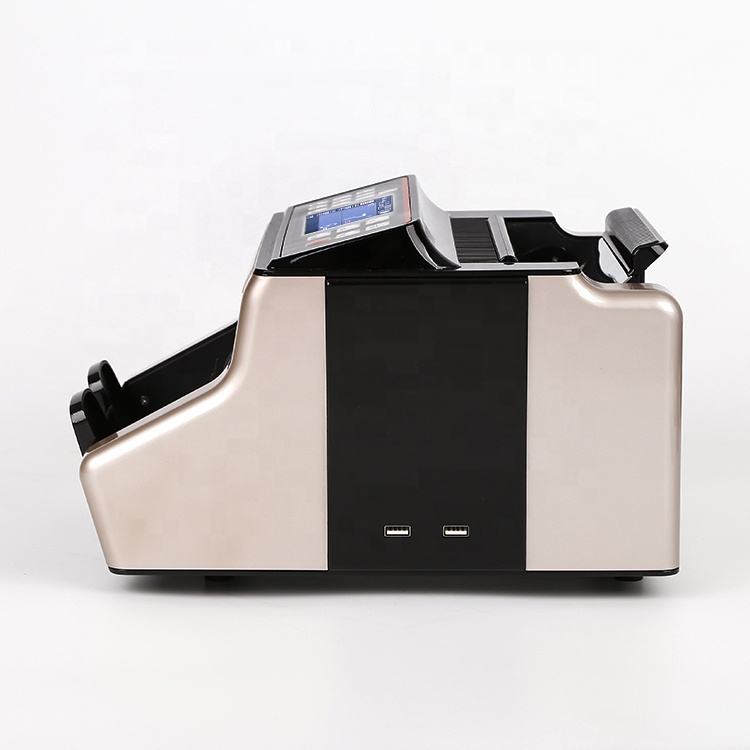

FJ-2830 Back Loading Banknote Value Counter

Key Features

• Automatic start, stop, and clearing for efficient operation

• Multi-level counterfeit detection during counting, including UV, MG, IR, MT, 3D, and full-color sensors

• Banknote value recognition, supporting Mixed Value Counting and Mixed Denomination Sorting

• Batch and add functions for flexible cash processing

• Reliable detection of half-notes, double-notes, and chained notes

• Large-size TFT color display for clear and intuitive operation

• Supports software updates to adapt to new counterfeit patterns and newly issued banknote versions or denominations

Specifications

• Model: FJ-2830

• Certification: CE, RoHS

• Color: Black & Gold

• Detection Methods: UV, MG, IR, MT, 3D, Color

• Counting Speed: >1,000 notes/min

• Functions: Counting, Batch, Add, Mixed Value Count, Mixed Sort

• Hopper / Stacker Capacity: 300 pcs / 200 pcs

• Display: TFT Color Screen

• Countable Banknote Size:

  • Length: 100 – 190 mm

  • Width: 50 – 90 mm

  • Thickness: 0.075 – 0.15 mm

• Display Counting Range: 1 – 9,999

• Working Environment:

  • Temperature: 0°C – 40°C

  • Humidity: 40% – 90% RH

• Power Supply:

  • AC 220V ±10% / 50Hz

  • AC 110V ±10% / 60Hz

• Power Consumption: <70W

• Noise Level (No-load): <60 dB

Weight & Packaging

• Net Weight: 5.0 kg

• Gross Weight:

  • Inner Box: 5.5 kg

  • Carton: 13.5 kg

• Inner Box Size: 382 × 308 × 262 mm

• Carton Size: 635 × 400 × 277 mm

• Packing: 2 pcs / carton

Standard Accessories

• Main unit

• User manual

• Power cord

• External display

• Screwdriver

• Cleaning brush
