Product Overview:

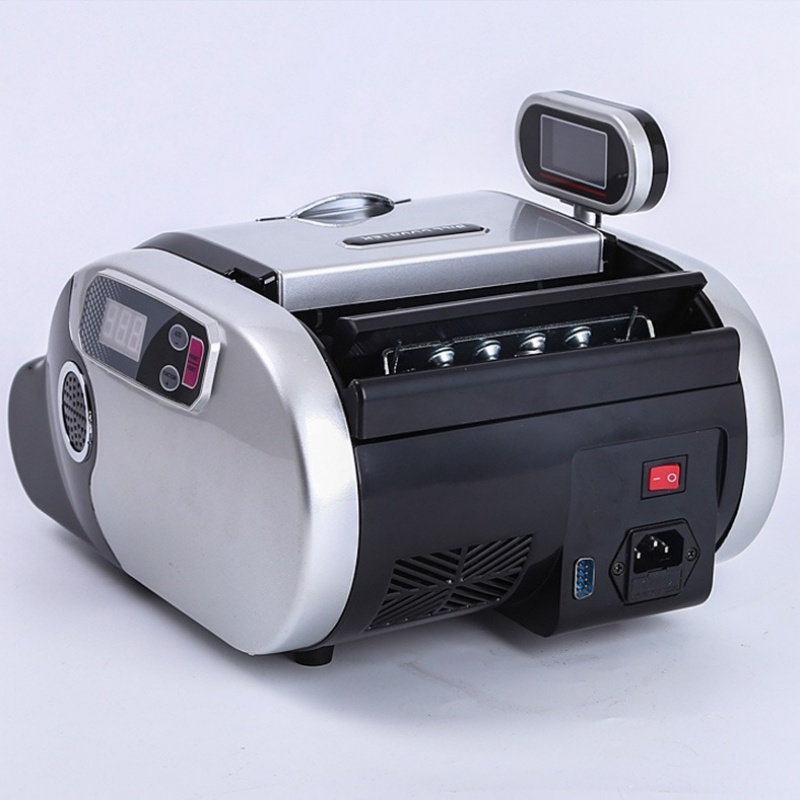

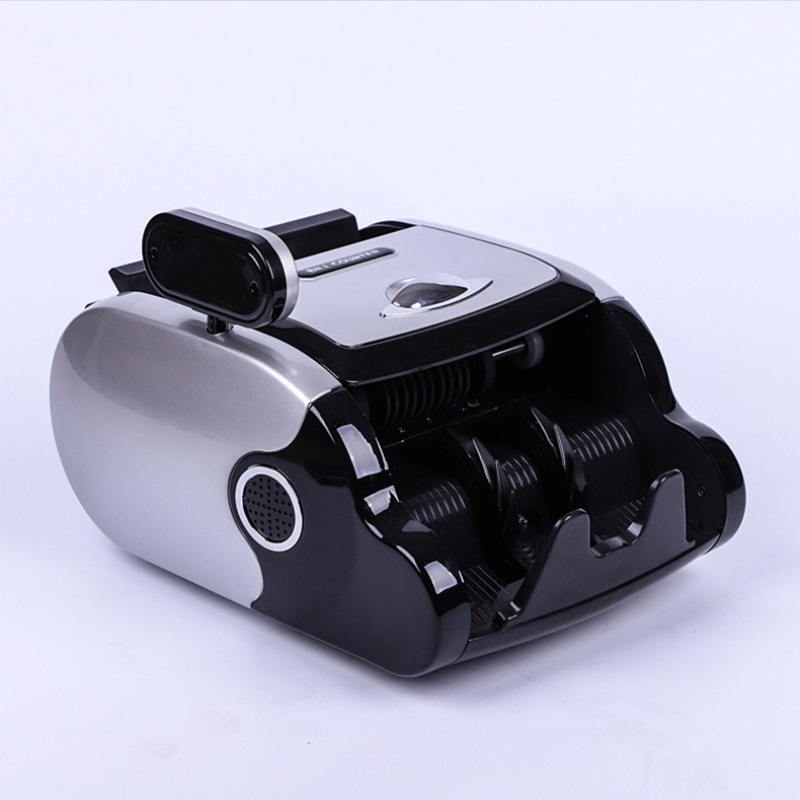

The RX-B10 is a compact, high-speed banknote counter designed for accurate and efficient currency counting. Integrated with advanced UV (ultraviolet) and MG (magnetic) detection systems, it ensures reliable counterfeit detection across most world currencies.
Key Features
- Accurate Display: Equipped with a built-in rotatable customer display for clear and precise reading.
- High Efficiency: Counting speed exceeds 900–1,000 notes per minute, saving time and improving workflow efficiency.
- Smooth Counting: Large hopper and stacker capacity (200+ notes) with automatic start, stop, batch, add, and self-check functions.
- User-Friendly Operation: Simple control panel with multiple counting modes — manual or batch (1–999).
- Humanized Design: Compact (300×275×198 mm), lightweight (4.5 kg), and equipped with a convenient carrying handle for mobility.
- Wide Application: Suitable for EUR, GBP, and most global currencies; ideal for banks, retail stores, offices, and personal use.
- Smooth Counting: Handles both polymer and paper banknotes with high stability and minimal jamming.
- Error Detection: Automatically identifies and stops on defective, stuck, double, or chain notes.
Detection Technology：
- UV (Ultraviolet) counterfeit detection
- MG (Magnetic) detection
- Infrared (IR) image recognition
- Auto start/stop and clearing functions
Technical Specifications：
| Counting Speed |
> 900 pcs/min |
| Size of Countable Notes |
50 × 110 mm – 90 × 185 mm |
| Hopper Capacity |
200 pcs |
| Stacker Capacity |
200 pcs |
| Display Type |
LED / External Display Included |
| Detection Methods |
UV (Ultraviolet), MG (Magnetic), IR (Infrared) |
| Operating Voltage |
AC220V ±10% 50Hz / AC110V ±10% 60Hz |
| Power Consumption |
< 80W |
| Noise Level |
< 60 dB |
| Dimensions (Machine) |
300 × 275 × 198 mm |
| Net Weight |
4.6 kg |
| Color Box Size |
360 × 298 × 240 mm (1 pc) |
| Gross Weight (1 pc) |
5.5 kg |
| Outer Carton Size |
620 × 370 × 260 mm (2 pcs) |
Package Includes:
- RX-B10 Main Unit
- External Display
- Rubber Cleaning Tool
- Power Cable
- English User Manual
